LR 230Sliding Glass Door
An impact-rated sliding glass door designed for panoramic views, smooth operation and dependable coastal performance.
- Space-efficient sliding panels create seamless indoor–outdoor transitions
- Durable stainless steel rollers support smooth, long-term operation
- Large glazed surfaces maximize daylight and panoramic views
47 5/8″ × 118 1/4″Maximum Panel Sizes
Panoramic views. Hurricane defense.
LR 230 combines expansive glazing with smooth sliding movement, durable components and weather-conscious detailing.

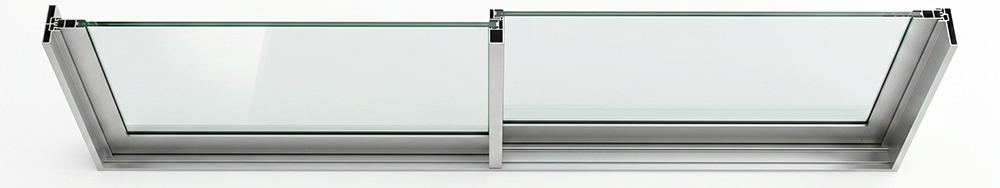

Space-Efficient Sliding
Horizontally moving panels connect indoor and outdoor spaces without requiring additional swing clearance.

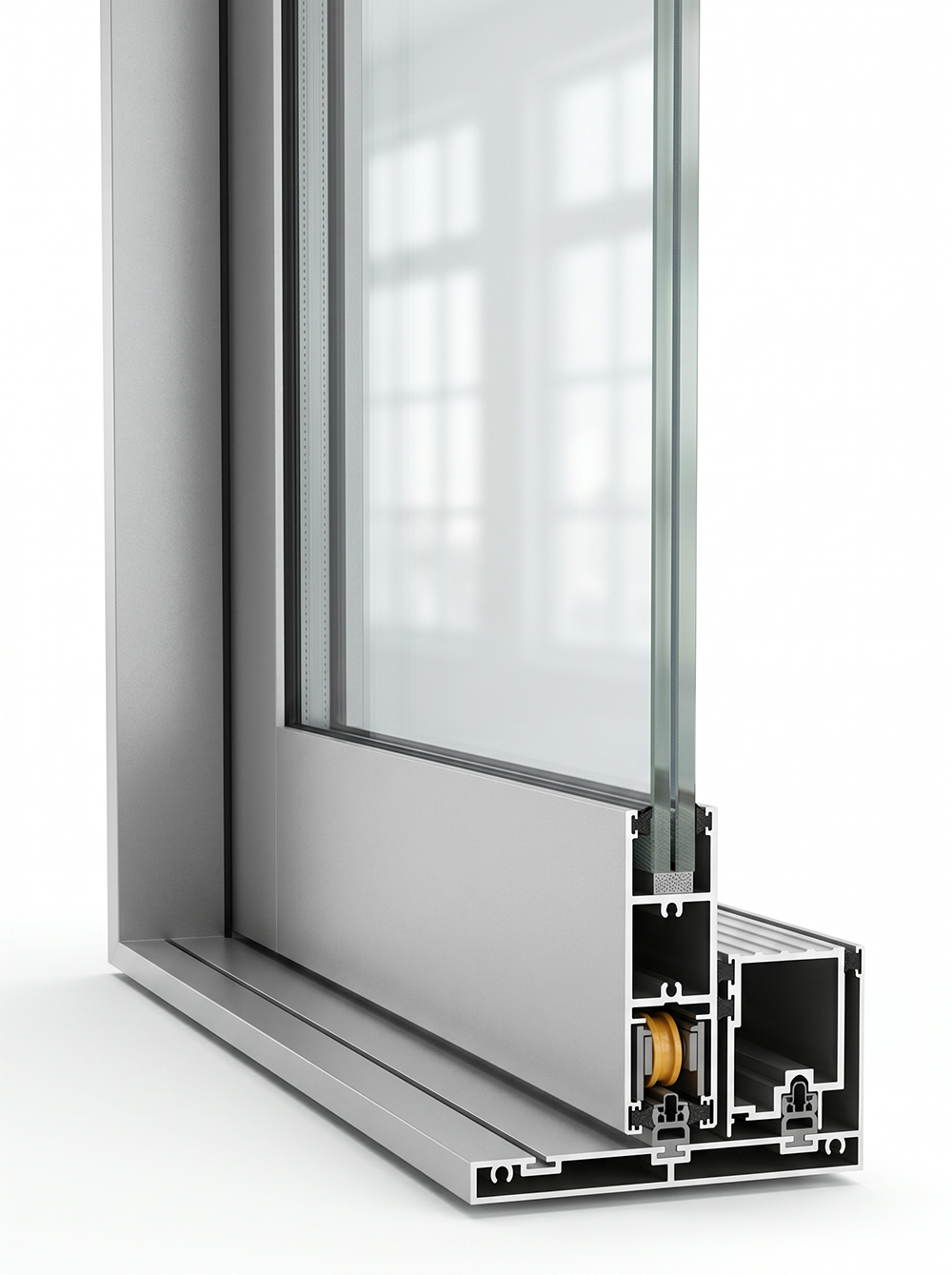

Stainless Steel Rollers
Durable stainless steel components support smooth, reliable operation under frequent use.
Reliable Weather Sealing
Integrated seals support air and water isolation for demanding coastal weather conditions.
Panoramic Glazing
Large glass surfaces introduce abundant daylight while maintaining clear, unobstructed views.
LR 230 Technical Details
TECHNICAL SPECIFICATIONS
- Track Configuration3 Track System
- Frame Depth5 1/4″
- Sill Height2 11/16″
- Maximum Panel Sizes60″ × 94″
47 5/8″ × 118 1/4″ - Maximum Design Pressure±90
- Driver / CapStainless Steel
- Operable PanelsUp to 6 Panels
- Glass Option9/16″ Laminated (PVB)
Final dimensions, glazing composition and available configurations should be confirmed according to project requirements and the applicable Florida Product Approval documentation.
Engineered to resist impact.
LR 230 combines expansive sliding panels with impact-rated construction for residential projects in demanding coastal environments. The applicable Florida Product Approval document is available for technical review.

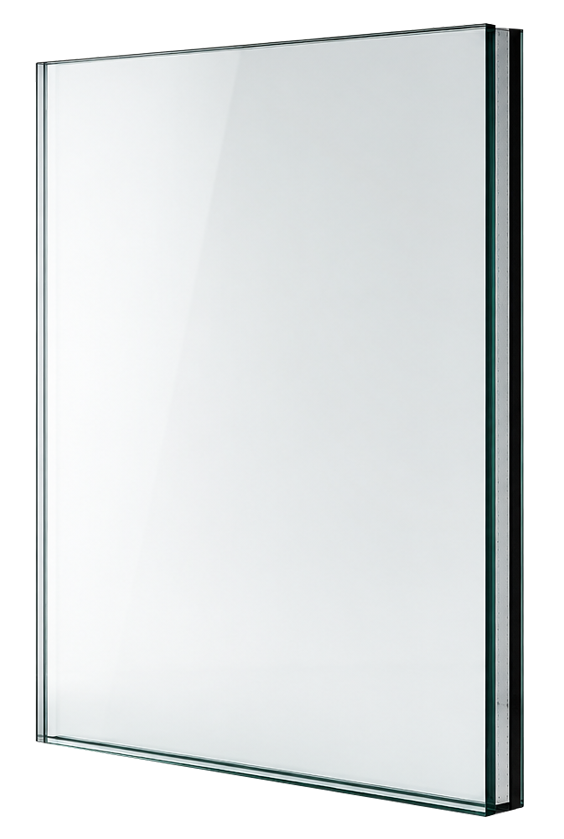

Impact-Rated Laminated Glass
The approved laminated glass configuration supports impact protection and project-specific performance requirements.
9/16″ Laminated
Laminated glass with a PVB interlayer for impact-rated protection.
PVBGlass composition, coatings and interlayers should be selected according to project requirements and applicable approval documentation. Contact our team for configuration guidance.
Architectural details, clearly defined.
Colonial Configurations
Decorative muntin layouts are available to coordinate the sliding door with different residential styles.
Glazing Beads
Square and ogee profile options provide a more tailored architectural expression.
Specify LR 230 for your next sliding door project.
Connect with our team for sizing, glazing, finish and configuration guidance—or learn how to work with Linea Rossa Design as a dealer.
