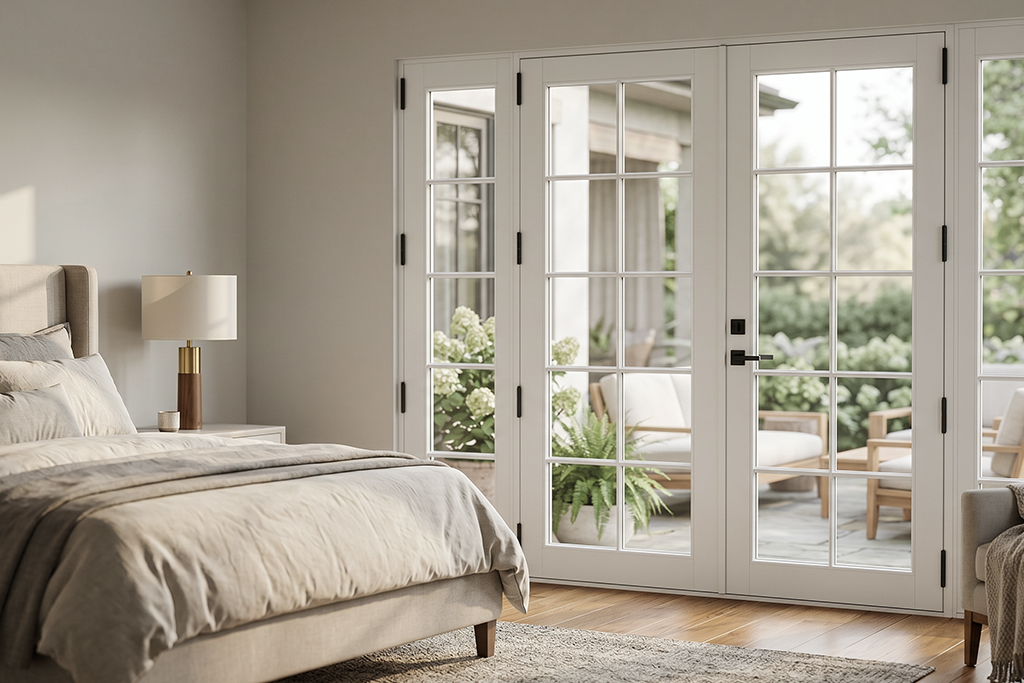

LR 460French Door
An impact-rated entrance door system combining refined proportions, flexible configurations and dependable coastal performance.
- Residential and commercial threshold configurations
- Multi-point locking supports security and structural stability
- Large glazed surfaces enhance daylight and entrance character
122″ × 108″Maximum Single & Double Sizes
Elegant doors for exceptional spaces.
LR 460 combines impact-rated construction, flexible entrance configurations and a refined contemporary appearance.

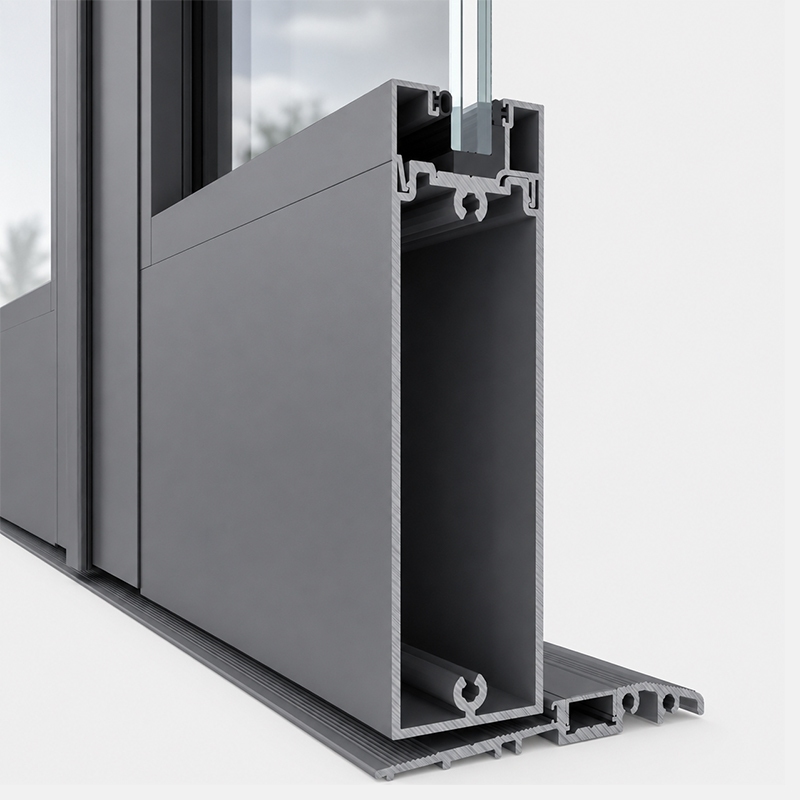

Threshold Flexibility
Residential and commercial sill configurations respond to different entrance and project requirements.
Multi-Point Locking
Advanced locking technology supports security, structural stability and dependable long-term performance.
Smooth Operation
Precision-engineered hardware and heavy-duty hinges support effortless, reliable daily use.

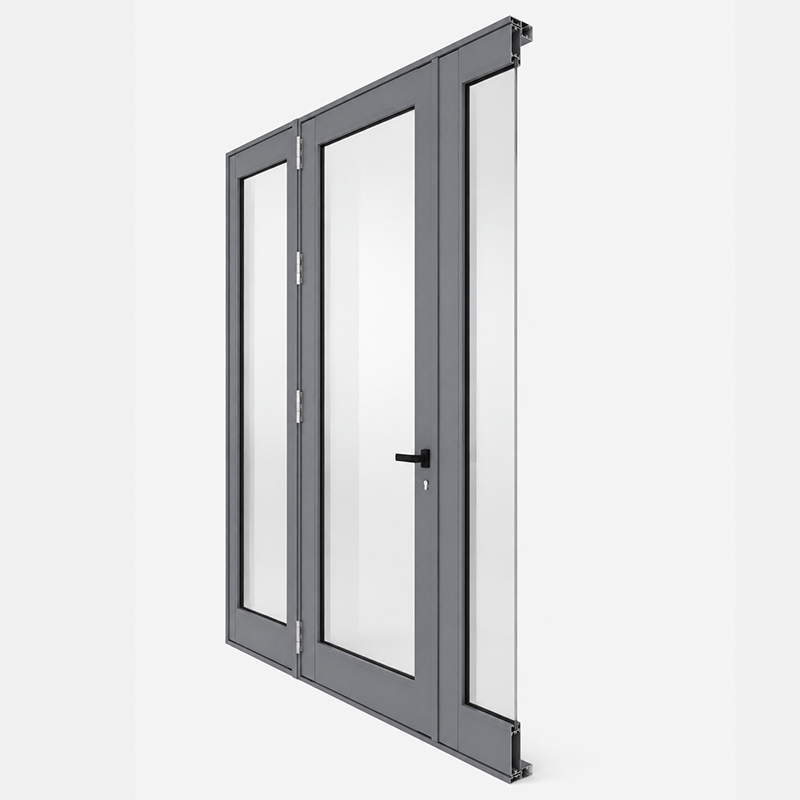

Design Flexibility
Single, double, sidelight, transom, glass, handle and finish alternatives respond to project requirements.

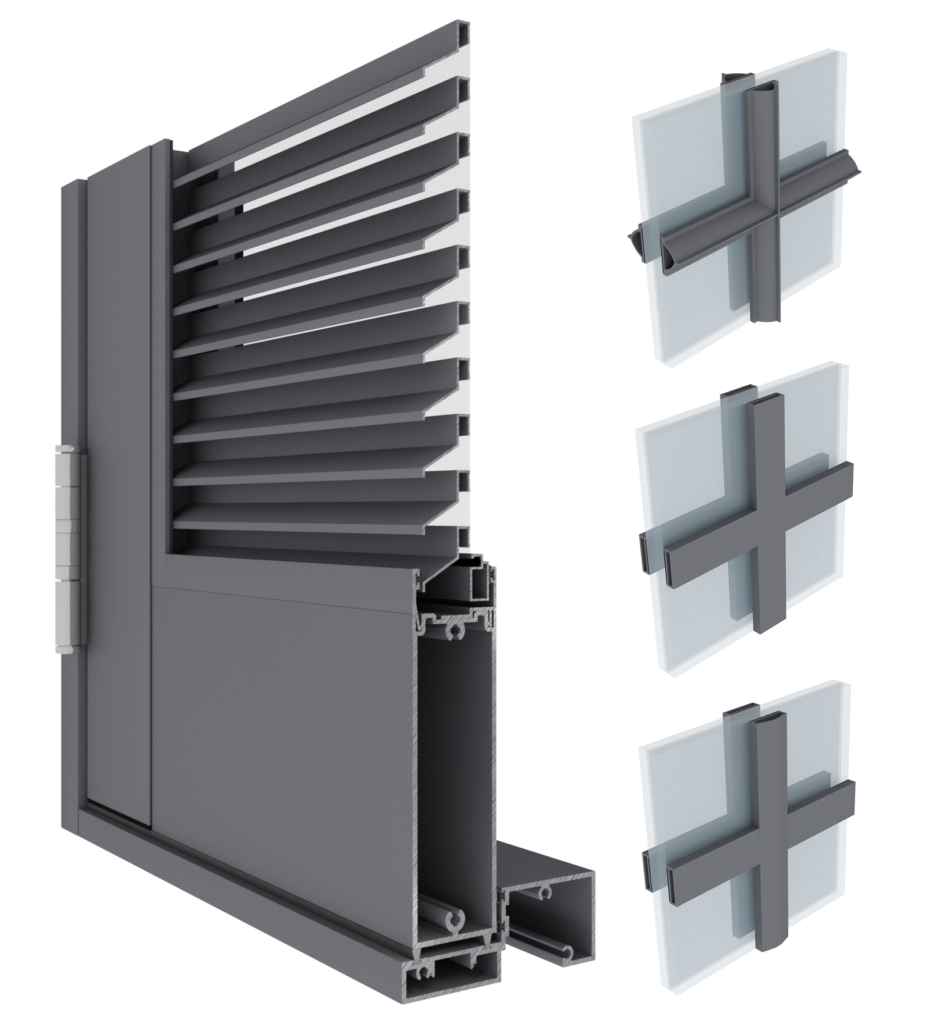

LR 460 Technical Details
TECHNICAL SPECIFICATIONS
- Frame Depth4 5/8″
- Residential Sill Height1 3/4″
- Commercial Sill Height1/2″
- Single Panel Maximum59 1/8″ × 94 1/8″
47 1/8″ × 118 1/8″ - Double Panel Maximum122″ × 108″
99″ × 120″ - Maximum Design Pressure±100
- Additional ElementsSidelights & Transoms
- Hardware3-Point Lock / Pull Handles
Final dimensions, glazing composition and available configurations should be confirmed according to project requirements and the applicable Florida Product Approval documentation.
Engineered to resist impact.
LR 460 combines flexible entrance configurations with impact-rated construction for residential and commercial projects in demanding coastal environments. The applicable Florida Product Approval document is available for technical review.
Impact-Rated Glass Options
Three laminated glass configurations support impact protection and project-specific performance requirements.
7/16″ Laminated
Impact-rated laminated glass with a PVB or SGP interlayer.
PVB or SGP9/16″ Laminated
Impact-rated laminated glass with a PVB or SGP interlayer.
PVB or SGP1 1/16″ Laminated
Enhanced laminated construction with a PVB or SGP interlayer.
PVB or SGPGlass composition, coatings and interlayers should be selected according to project requirements and applicable approval documentation. Contact our team for configuration guidance.
Architectural details, clearly defined.

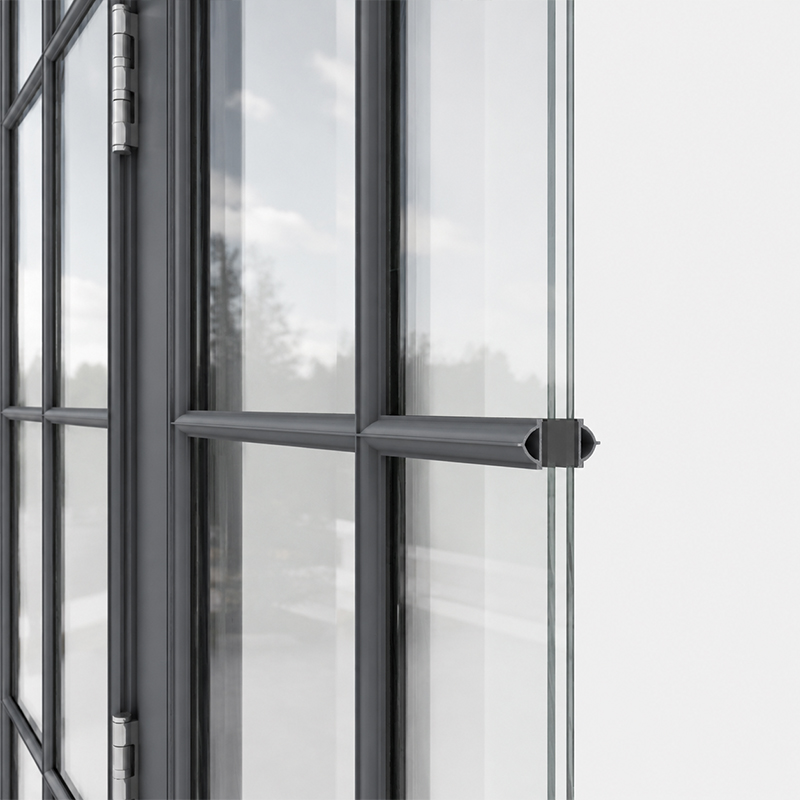

Colonial Configurations
Available colonial layouts coordinate the entrance with different residential and architectural styles.

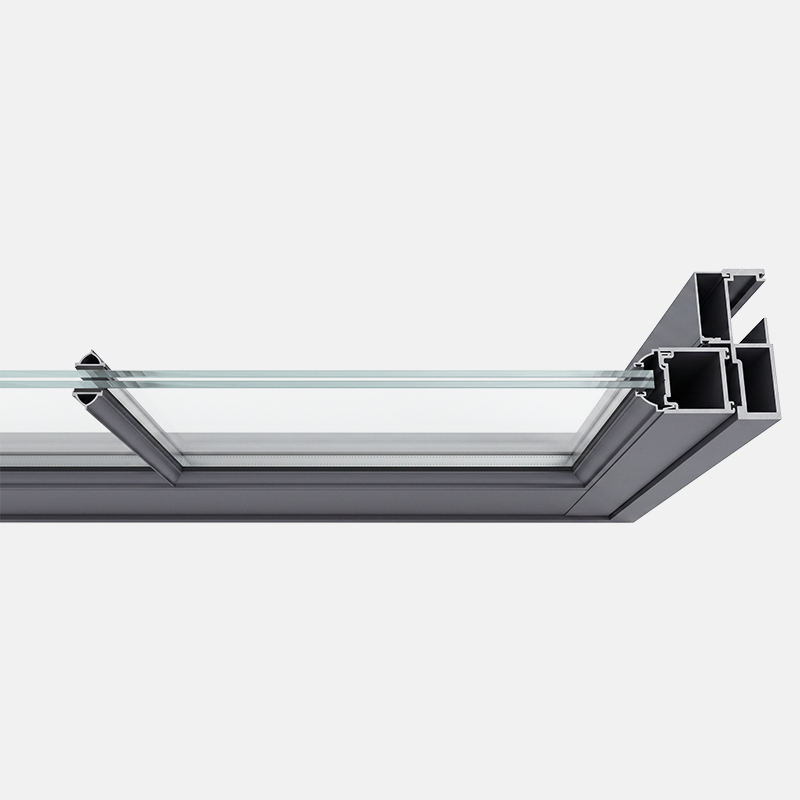

Glazing Beads
Square and ogee profile options provide a more tailored architectural expression.
Glass Selections
Color, privacy and interlayer selections can be coordinated with the architectural and performance requirements of the project.
CLEAR GLASS
AZURE GLASS
GREEN GLASS
BRONZE GLASS
GRAY GLASS

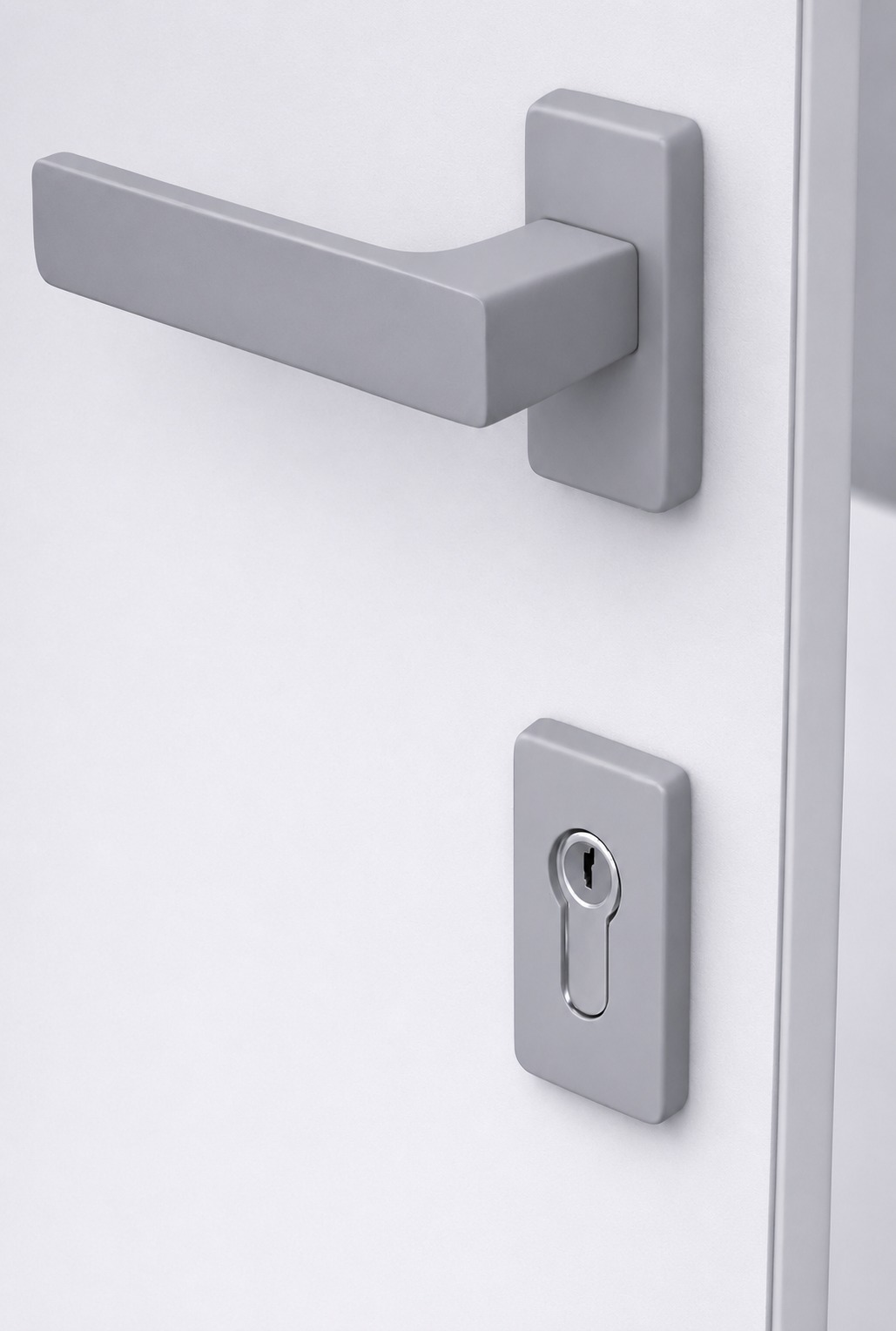

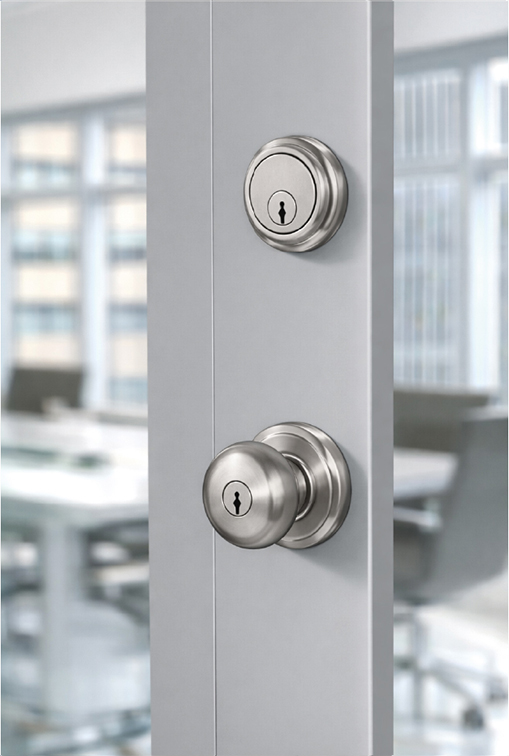

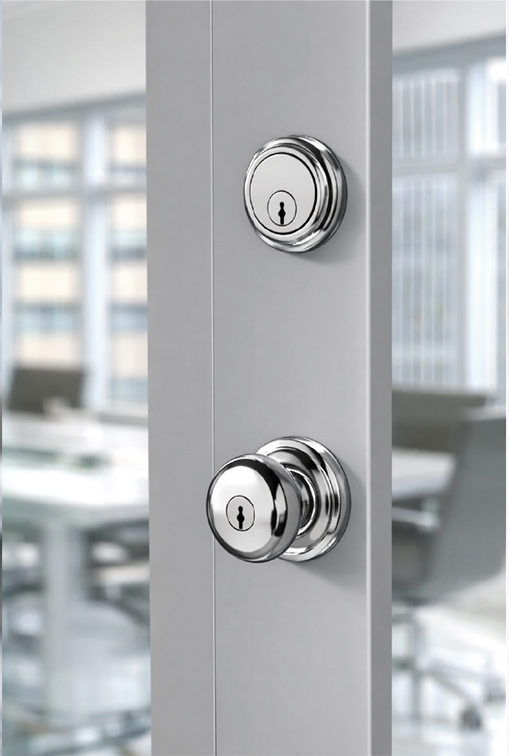

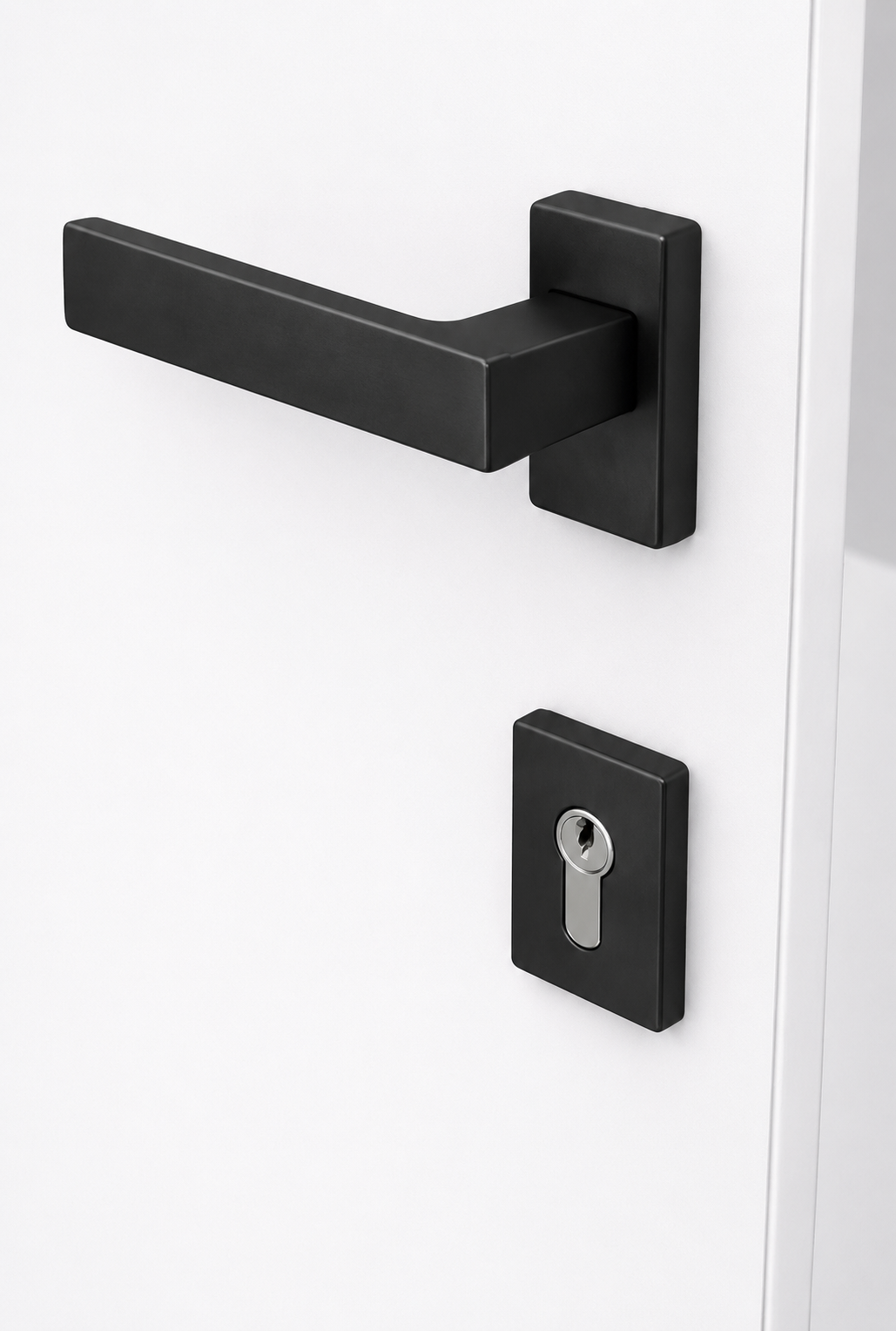

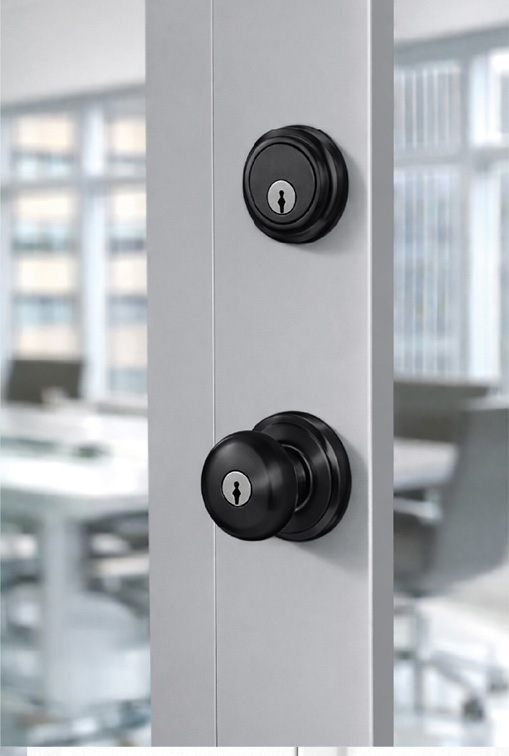

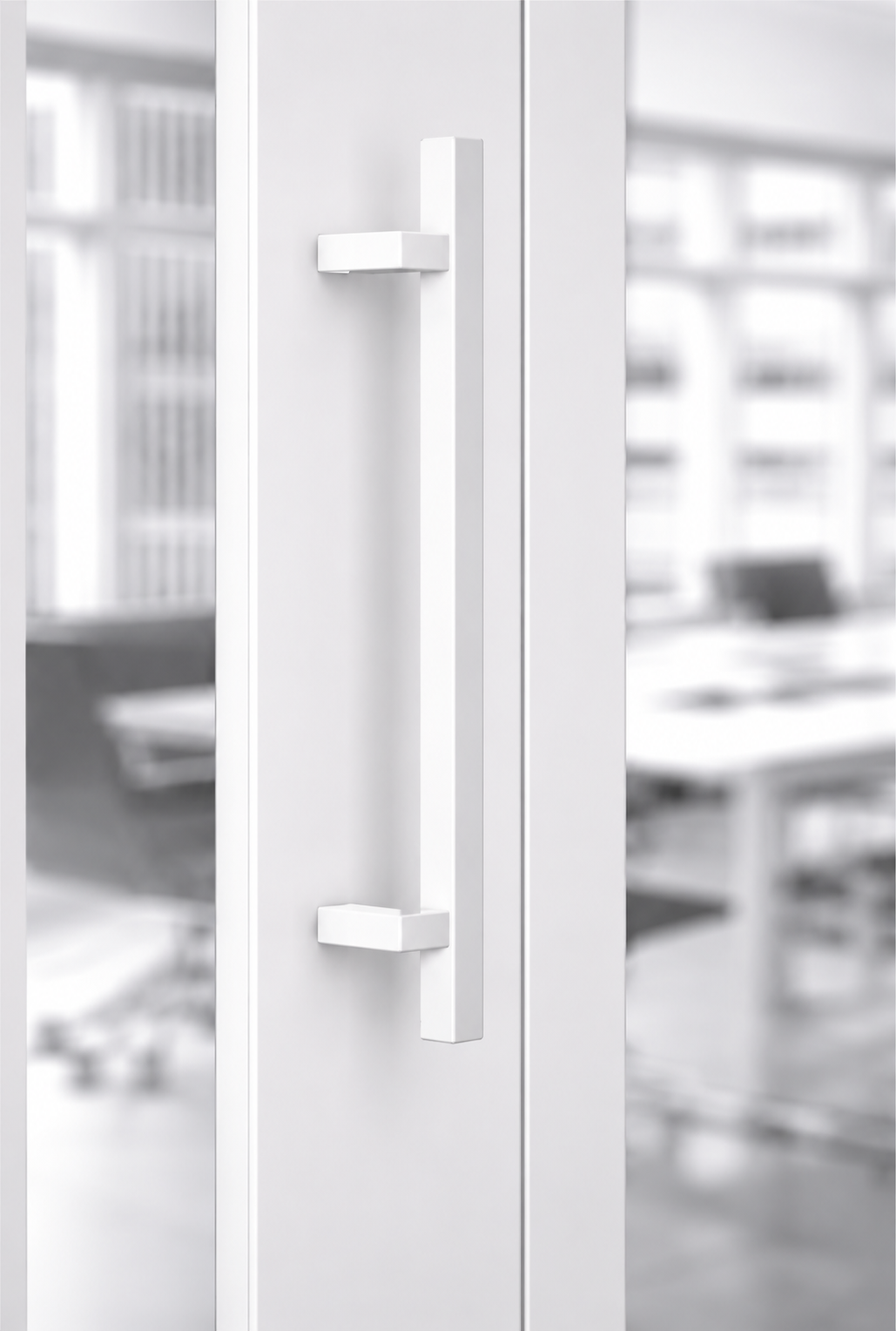

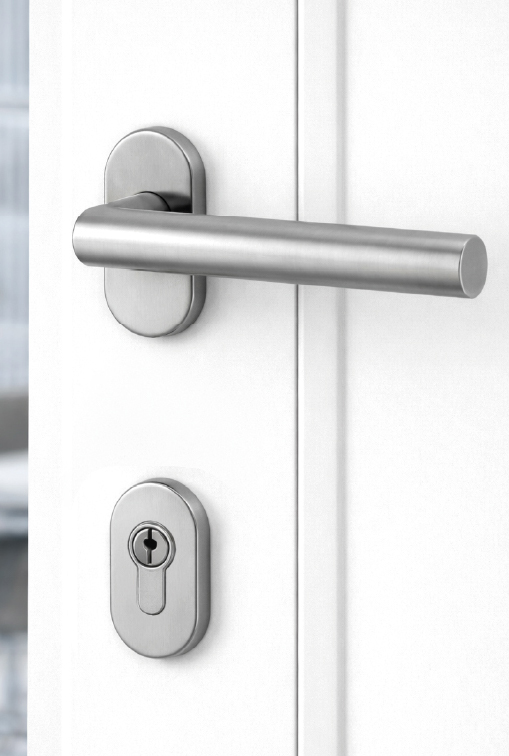

WHITE INTERLAYERHandle Selections
Pull handles and commercial locking alternatives can be coordinated with the selected door configuration and finish.
Specify LR 460 for your next entrance project.
Connect with our team for sizing, glazing, finish, hardware and configuration guidance—or learn how to work with Linea Rossa Design as a dealer.
