GLR-65 STOREFRONT SYSTEM
TECHNICAL SPECIFICATIONS:

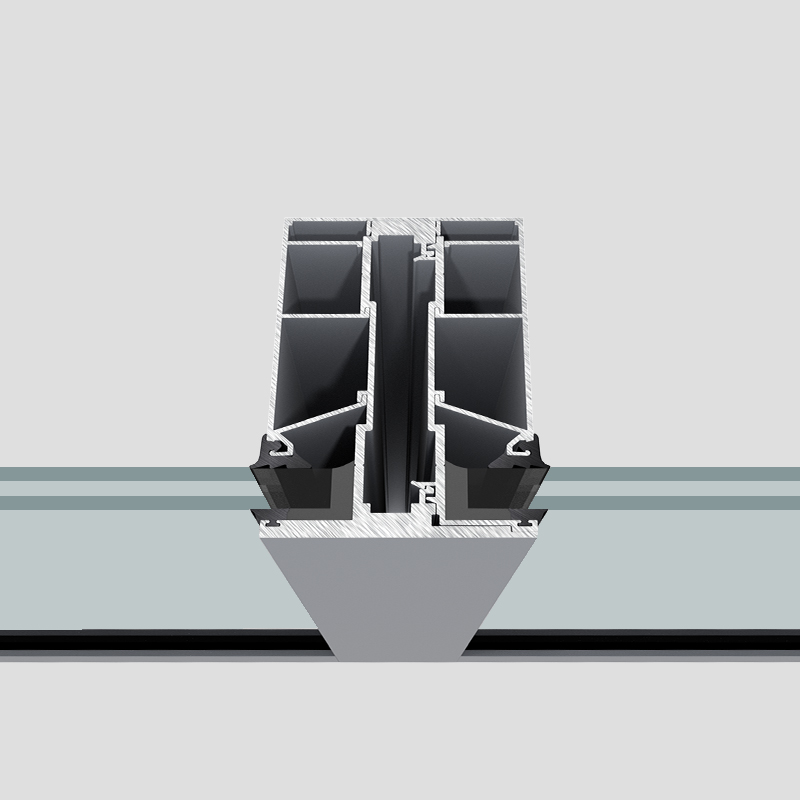

MULLION WIDTH
3″
MULLION DEPTH
5″
OPTION
MULLION DEPTH
7″

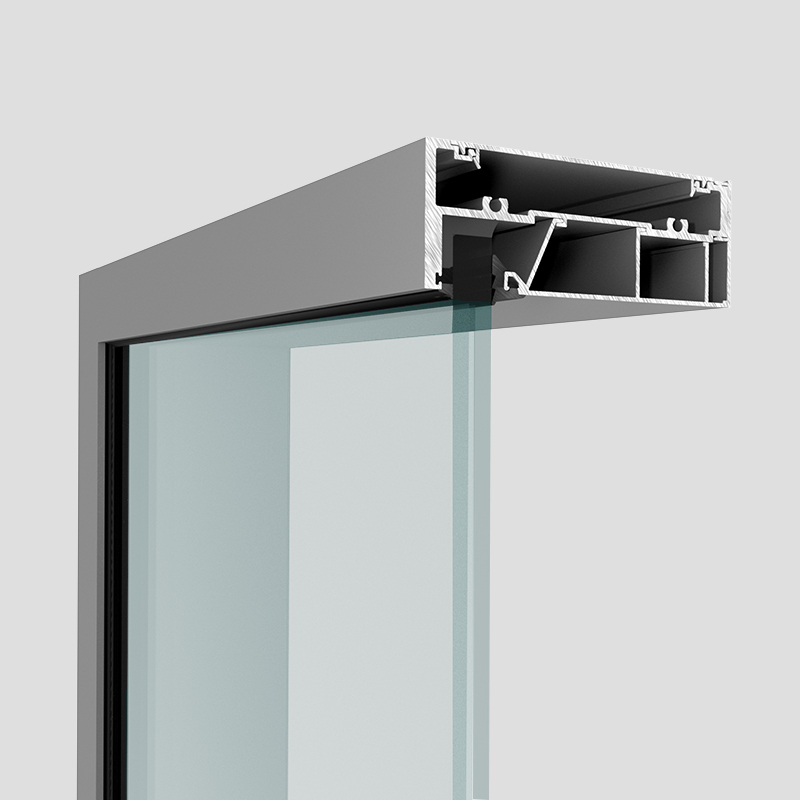

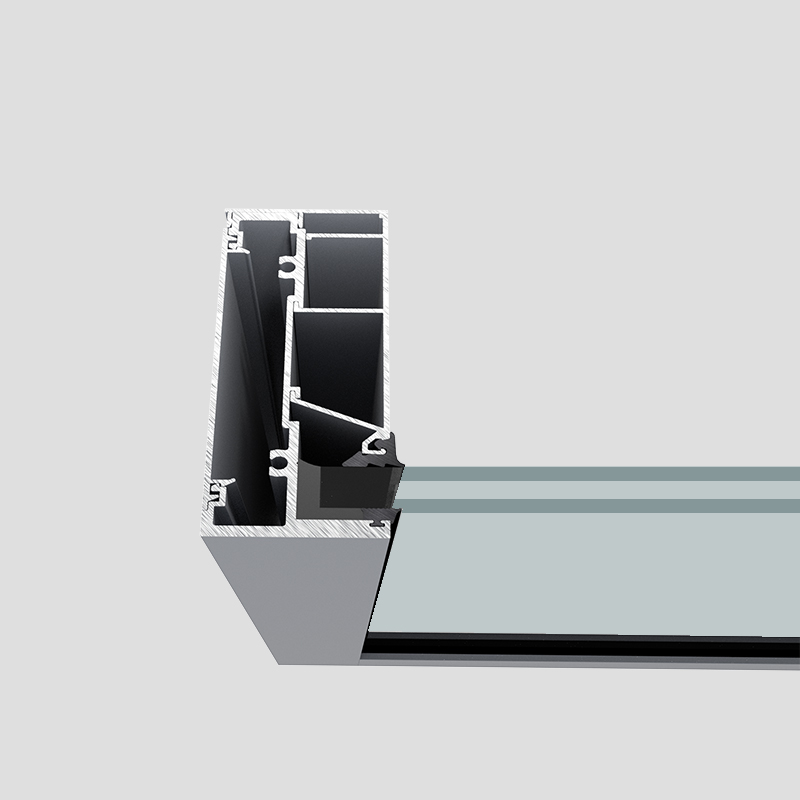

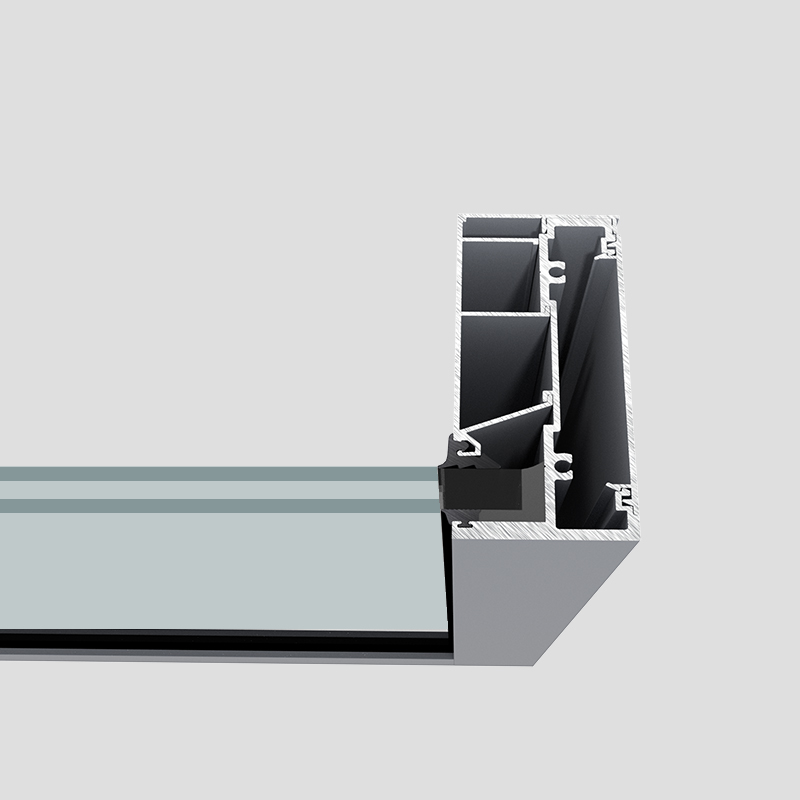

TECHNICAL SPECIFICATIONS:
FRAME WIDTH
5″
FRAME HEIGHT
2″
Dual Options
Interior & Exterior
Interior & Exterior
• Dual Color Options for Interior & Exterior Surfaces
Different color applications for interior and exterior surfaces provide greater architectural flexibility while supporting personalized contemporary façade designs.
• Modern Façade Aesthetics with Lasting Durability
Our aluminum façade system combines refined aesthetic design with structural durability, creating elegant building envelopes suitable for modern architectural projects.
• Flexible Modular Curtain Wall Design
The GLR-95 system supports customized panel configurations, glazing options, and architectural finishes tailored to the unique requirements of each building.
Glass
Options
PVB
1/4" + 0,09" (PVB) + 1/4"
HEAT STREN'D GLASS LAMINATED GLASS
1/4" + 1/2" AIR SPACE + 1/4"
+0,09" (PVB) + 1/4"
+0,09" (PVB) + 1/4"
HEAT STREN'D GLASS INSULATED LAMINATED GLASS
SGP
1/4" + 0,09" (SGP) + 1/4"
HEAT STREN'D GLASS LAMINATED GLASS
1/4" + 1/2" AIR SPACE + 1/4"
+0,09" (SGP) + 1/4"
+0,09" (SGP) + 1/4"
HEAT STREN'D GLASS INSULATED LAMINATED GLASS
Advanced Glass Solutions
Our glazing systems are designed to deliver enhanced durability, thermal performance, and hurricane impact resistance for modern architectural applications. Multiple laminated and insulated glass configurations are available to meet different project requirements and performance expectations.
For detailed technical specifications, custom glazing combinations, and project-based recommendations, please contact our team for further assistance.
For detailed technical specifications, custom glazing combinations, and project-based recommendations, please contact our team for further assistance.
Available options depend on profile and configuration selections. Please contact your Linea Rossa representative.
