LR 530FThermally Broken Fixed Window
A thermally broken, impact-rated fixed window system developed for energy-conscious interiors, expansive daylight and dependable coastal performance.
- Integrated thermal barrier limits heat transmission
- Fixed, fixed-casement and custom architectural forms
- Minimal sightlines frame clear views and natural light
Thermal control, framed with clarity.

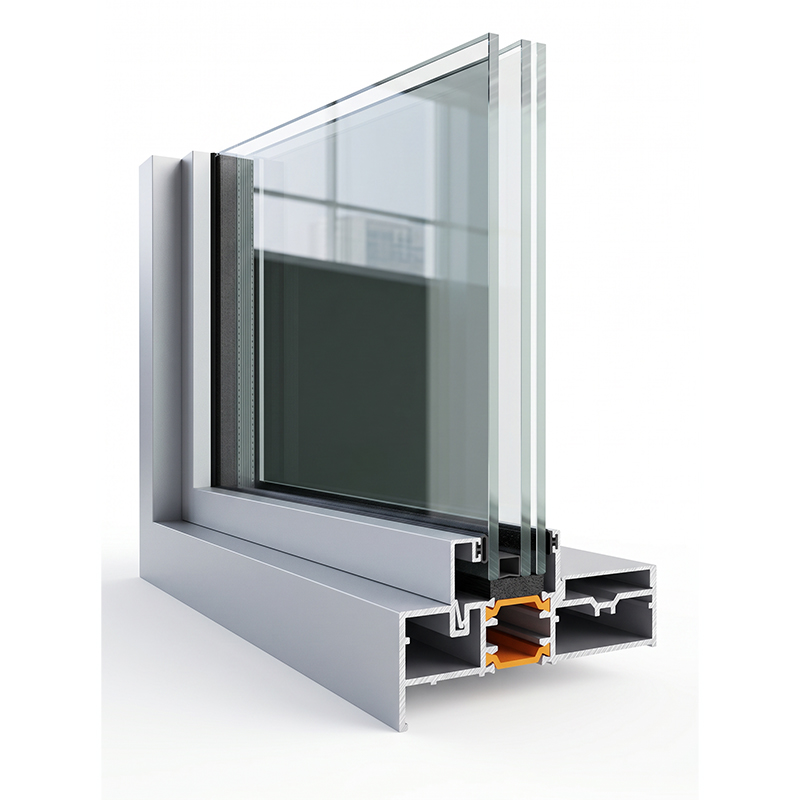

LR 530F combines a thermally broken aluminum structure, expansive fixed glazing and custom architectural forms in one coordinated system.

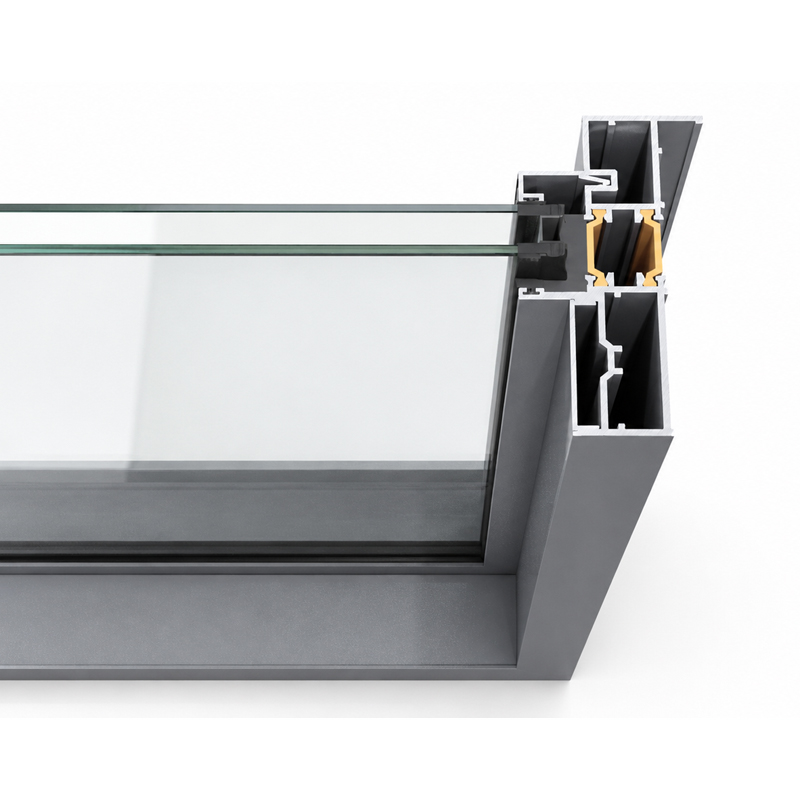

Thermal Break Technology
An integrated thermal barrier reduces heat transfer to support interior comfort and energy performance.
Architectural Forms
Standard fixed, circle, triangle and arch configurations support varied architectural compositions.
Maximized Daylight
Large uninterrupted glazed areas increase daylight penetration and maintain clear exterior views.
Structural Performance
Engineered aluminum framing supports durability and dependable performance in demanding conditions.
LR 530F Technical Details
TECHNICAL SPECIFICATIONS
- Fixed Window Frame Depth4 1/8″
- Fixed Casement Jamb Depth4 1/8″
- Fixed Window Jamb Height1 7/16″
- Maximum Size42″ × 90″
- Maximum Design Pressure±80
- Thermal BarrierIntegrated Polyamide
- System DetailsFlush Frame Adaptor / Clipless Mull
- Glass Option15/16″ Insulated Laminated
Final dimensions, glazing composition and available configurations should be confirmed according to project requirements and the applicable Florida Product Approval documentation.
Engineered to resist impact.
LR 530F brings thermal-break performance and impact-rated construction together for residential projects in demanding coastal environments. The applicable Florida Product Approval document is available for technical review.
Impact-Rated Glass Options
Laminated and insulated laminated configurations support impact protection and project-specific performance requirements.

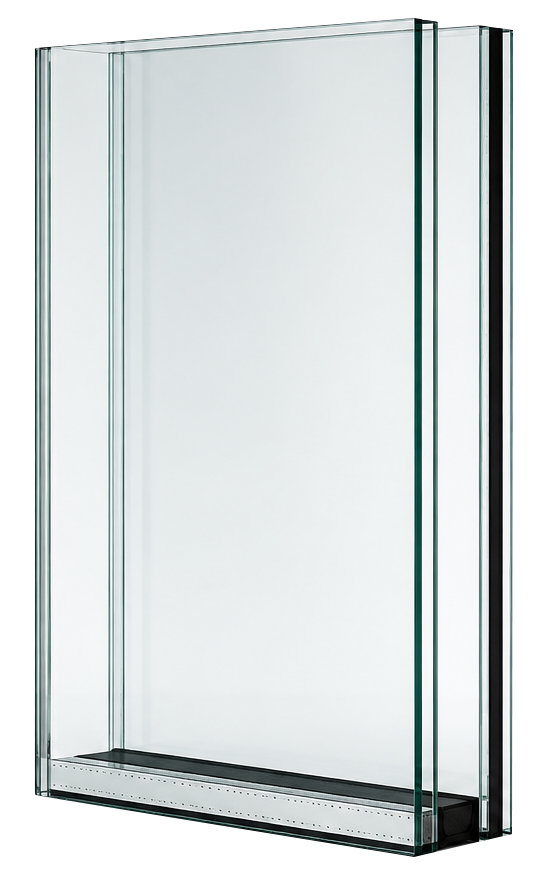

15/16″ Insulated Laminated
Impact-rated insulated laminated construction supports thermal performance with a PVB or SGP interlayer.
PVB or SGPGlass composition, coatings and interlayers should be selected according to project requirements and applicable approval documentation. Contact our team for configuration guidance.
Architectural details, clearly defined.
Colonial Configurations
Decorative muntin layouts are available to coordinate the fixed window with different residential styles.
Glazing Beads
Square and ogee profile options provide a more tailored architectural expression.
Specify LR 530F for your next fixed-window project.
Connect with our team for sizing, glazing, finish, shape and configuration guidance—or learn how to work with Linea Rossa Design as a dealer.
